    CAS Small Sachet Wheat Bag Packing Machine 50HZ 2.5kg

    Ask Lasest Price
    Brand Name : Ewinall
    Model Number : DCS-25W
    Certification : CE,QMS,CCPIT,ISO
    Supply Ability : 5 sets per day
    Delivery Time : 20 days
    • Product Details
    • Company Profile

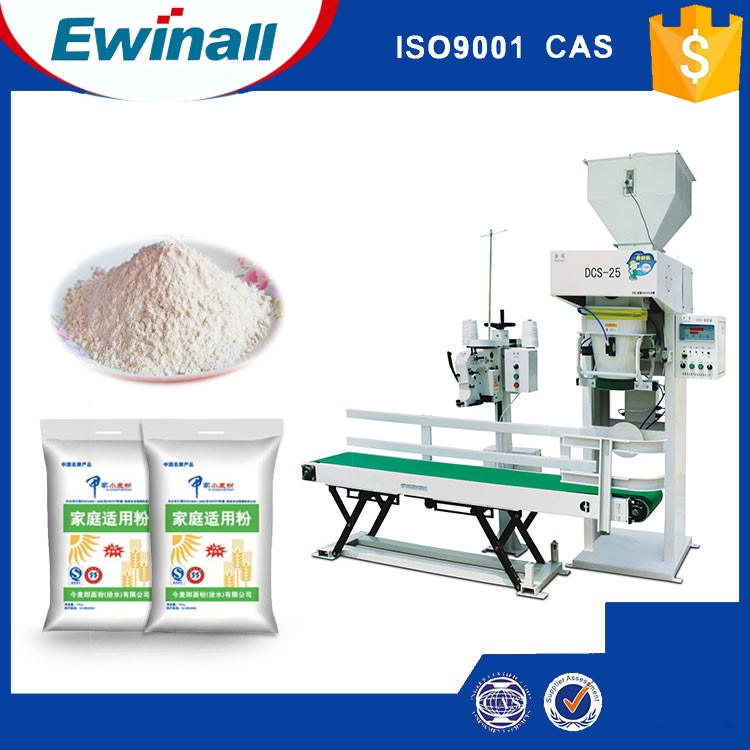

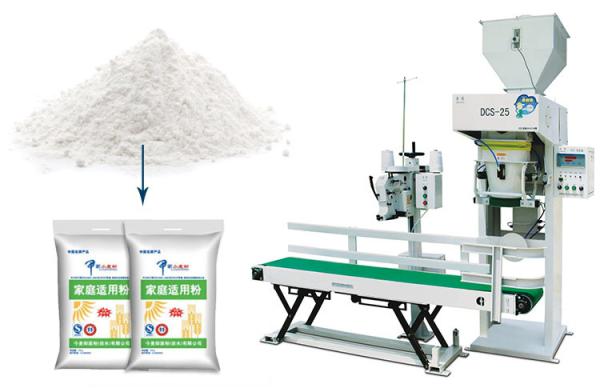

    CAS Small Sachet Wheat Bag Packing Machine 50HZ 2.5kg

    small powder packing machine from 2.5kg to 15kg

    DCS-25W for small powder packing machine with silo,conveyor and sewing machine



    A:Scope of application

    Quantitative packaging of powder materials in flour, feed, food additives, chemical industries and other industries.



    B: Features
    1. The domestically pioneered conveyor manual lifting technology, the core components adopt internationally renowned brands, advanced functions, stable and reliable.
    2. The specially designed twisted-pair cage feeding mechanism, combined with the control algorithm of the controller, makes the scale's packaging speed and accuracy high.
    3. Adopt international advanced high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate is up to 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good.
    4. Equipped with manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and clogged materials.
    5. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.
    6. With automatic drop correction function. Out of tolerance alarm.
    7. The operation is simple. The operator only needs to cover the bag and touch the bag clamping switch (or step on the foot switch), and the feeding, filling, unloading and other actions are all automatically completed.


    C: Parameter:


    Model:DCS-25W
    Covveyor:lifting conveyor
    Display:intelligent controller
    Range(kg)5~25
    Division(g)5
    AccurancyX(0.5)
    Capacity(bags/hour)170~240
    Consumption3.7kw,0.4-0.5Mpa Air16.7L/min
    EnvironmentHumidity≤90%,4N-AC380V±10% 50HZ

    Dimension(mm)

    L×W×H

    2654×1215×2641

    Remarks: The height of the external dimensions includes the hopper


    D: Components


    NameBrandNote
    Weighing controllerGMWeighing control instrument product development and design is a Japanese company, and all components are imported from Japan.
    PLCDELTA
    Load cellMETLLER TOLEDO(USA)
    Solenoid valveMINDMAN
    SENSORSICK(Germany)
    Proximity switchOMRON(Japan)
    CylinderAIRTAC
    Air partAIRTAC

    E: Custormer place
