    QEMS Beans Pulse Packaging Machine 240 Bags / H 25 Kg Rice PLC Control

    Ask Lasest Price
    Brand Name : Ewinall
    Model Number : DCS-50E2-Z
    Certification : ISO,QMS,CE,CCPIT,EMS,QEMS
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per day
    Delivery Time : 20 days
    • Product Details
    • Company Profile

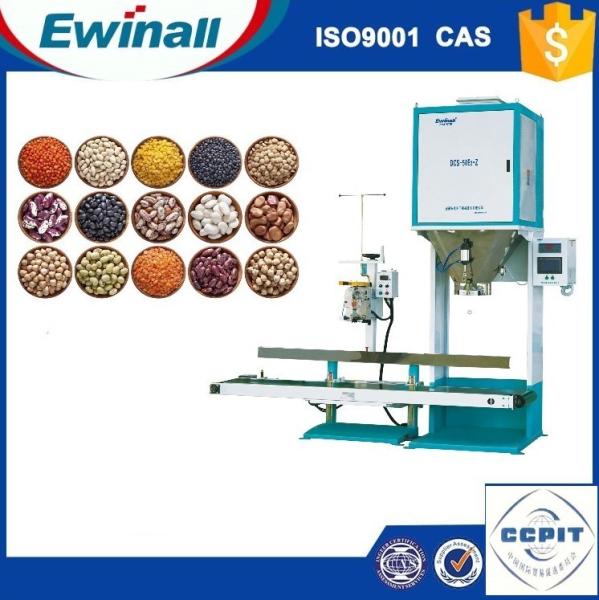

    QEMS Beans Pulse Packaging Machine 240 Bags / H 25 Kg Rice PLC Control

    Beans,Pulese And Peanut Packing Machine With Viberator And LED Touch Screen

    DCS-50E2-Z Product Description of Intelligent Electronic Quantitative Packaging Scale


    Application

    It is suitable for quantitative packaging of peanuts, peanuts and other granular materials with good flow properties.


    Features


    1. The two-sensor mechanism and reasonable layout enable the weighing bucket to receive reasonable force, which greatly improves the stability and anti-interference ability of the equipment;

    2. Adopt high-precision weighing sensor and quantitative controller, the controller adopts high-performance A/D converter, the conversion rate can reach 200 times/sec, the input sensitivity is 0.5μν/d, the measurement accuracy is high, and the stability is good;

    3. The multi-stage feeding mechanism, combined with the control algorithm of the controller, makes the scale's packaging speed and accuracy high;

    4. The electromagnetic vibrator is used for ingredients, which greatly improves the accuracy of the equipment's ingredients;

    5. Friendly man-machine interface, equipment operation is simple and convenient, reducing labor intensity, improving the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions;

    6. There is a manual control mode, which can control the discharging and loose bag mechanism separately by manual operation, which is convenient for cleaning agglomerated and blocked materials;

    7. Automatic bag sewing and automatic thread cutting function;

    8. It has the functions of automatic statistics, printing and data communication of the number of packages and the volume of packages.


    Parameter


    ModelDCS-50E2-Z
    Display methodIntelligent instrument display and control
    Range(kg)10~50(peanut);10~30(peanut with shell)
    Division(g)10
    AccurancyX(0.2)
    capacity(bags/h)200~240
    Consumption1.1kW,0.4-0.5Mpa Air 16.7L/min
    Power and environmentHumidity≤90%,4N-AC380V±10% 50HZ

    Size(mm)

    L×W×H

    3160×1155×3365

    Remarks: Weighing speed refers to the data when peanuts and peanuts are used as packaging materials under specified conditions.


    Components


    NAMEBrandNote
    Weighing controllerGM
    Touch screenDELTA
    PLCDELTA
    Load cellCELTRON
    Solenoid valveMINDMAN
    SensorSICK(Germany)
    Proximity switchOMRON(JAPAN)
    CylinderAirtac
    Air partAirtac

    Certification
