bagging and boxing machine with robot hand
High speed boxing and bagging machine in auto packing line
The parameter
1, Packing capacity and carton size
| MODEL | ZXJ-1400 |
| Boxing way | Cartesian coordinate robot transfer |
| Range | (2.5-10)kg |
| capacity(bags/hour) | 1000-1400 |
| Carton size | L(mm) | 345～480 |
| W(mm) | 225～340 |
| H(mm) | 215～305 |
Remarks: The above speed is tested under the condition of
continuous supply of cartons and rice bags.
2, Main technical performance
Packing specification (single row): 2.5kg×5 packs; 5kg×4 packs;
10kg×3 packs
Air pressure: 0.5～0.7MPa
Total air consumption: 83L/min
Total power consumption: AC380V±10%, 50Hz, three-phase five-wire
system, 4 kw
Environment temperature: 0～40℃
Ambient humidity: no more than 90%RH at 40°C, higher humidity is
allowed at low temperatures
Grounding form: TN-S

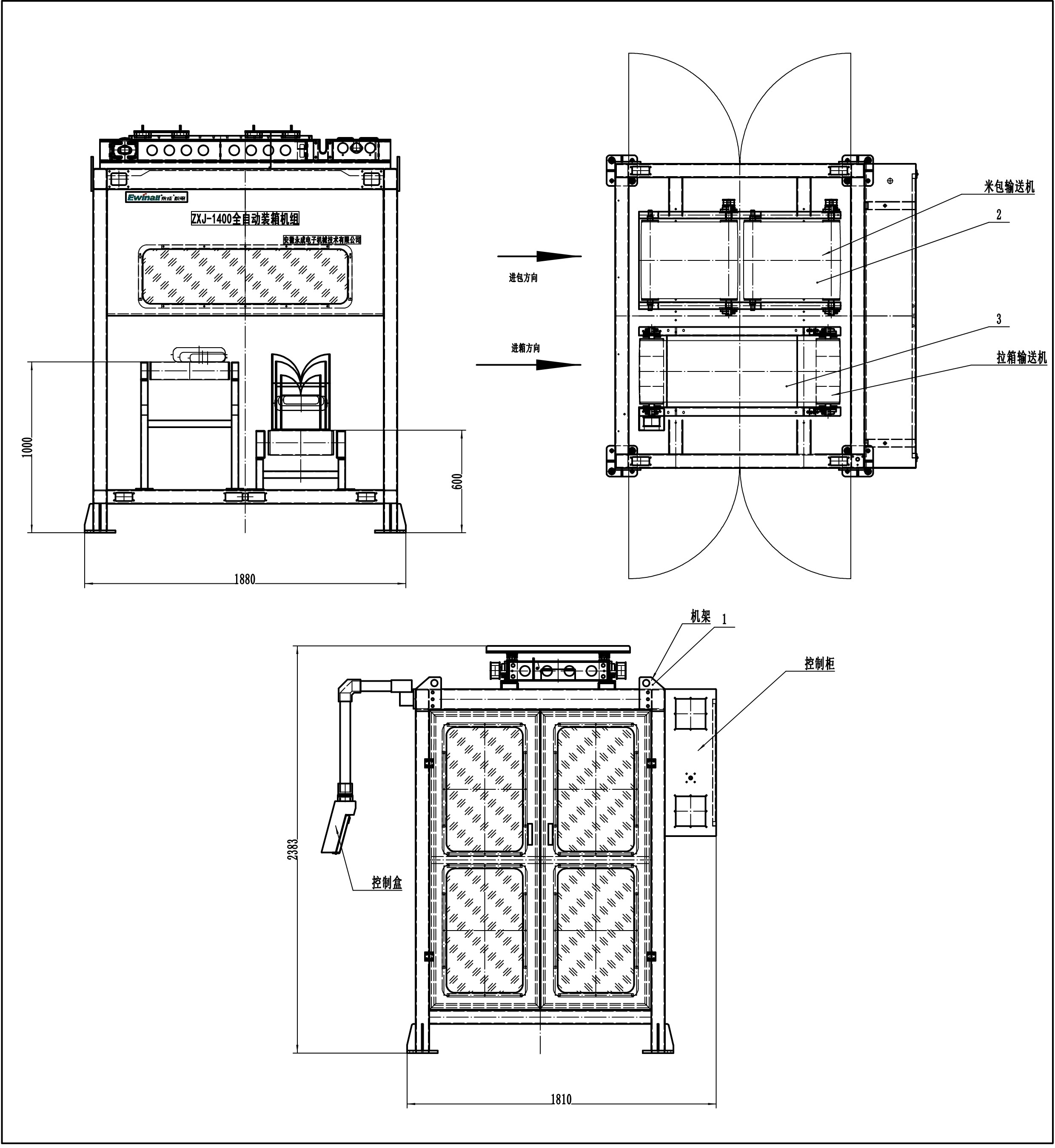

Overall dimension length×width×height (mm): 2310×1880×2383
3,Features
1. High packing efficiency: multi-station design for packing to be
coded, fast packing speed, first arrangement and then packing,
reducing the number of picking and placing of materials, and no
waiting for picking and placing.
2. Good packing effect: The positioning and conveying adopts a full
servo system, which has fast moving speed, low operating noise,
high positioning accuracy, and a large rectangular coordinate
stroke. The materials can be placed on the bottom of the carton
smoothly to ensure the packing effect.
3. High degree of automation: It is quick to change specifications,
can quickly change product packaging specifications with one key,
adapt to the needs of flexible production, and automatically
complete functions such as conveying, packing and carton output.
4. Flexible packaging: It can be used for rice bag steering and
hand-cartoning functions to reduce the size of the packing box and
the damage during transportation.
5. High safety performance: The equipment adopts a closed structure
design and has a safety interlocking device.
6. Friendly man-machine interface: easy to operate and maintain,
the equipment has a fault self-checking prompt function, and the
fault can be quickly eliminated according to the fault prompt.
7. The way of taking the package is two grabs and two releases.
