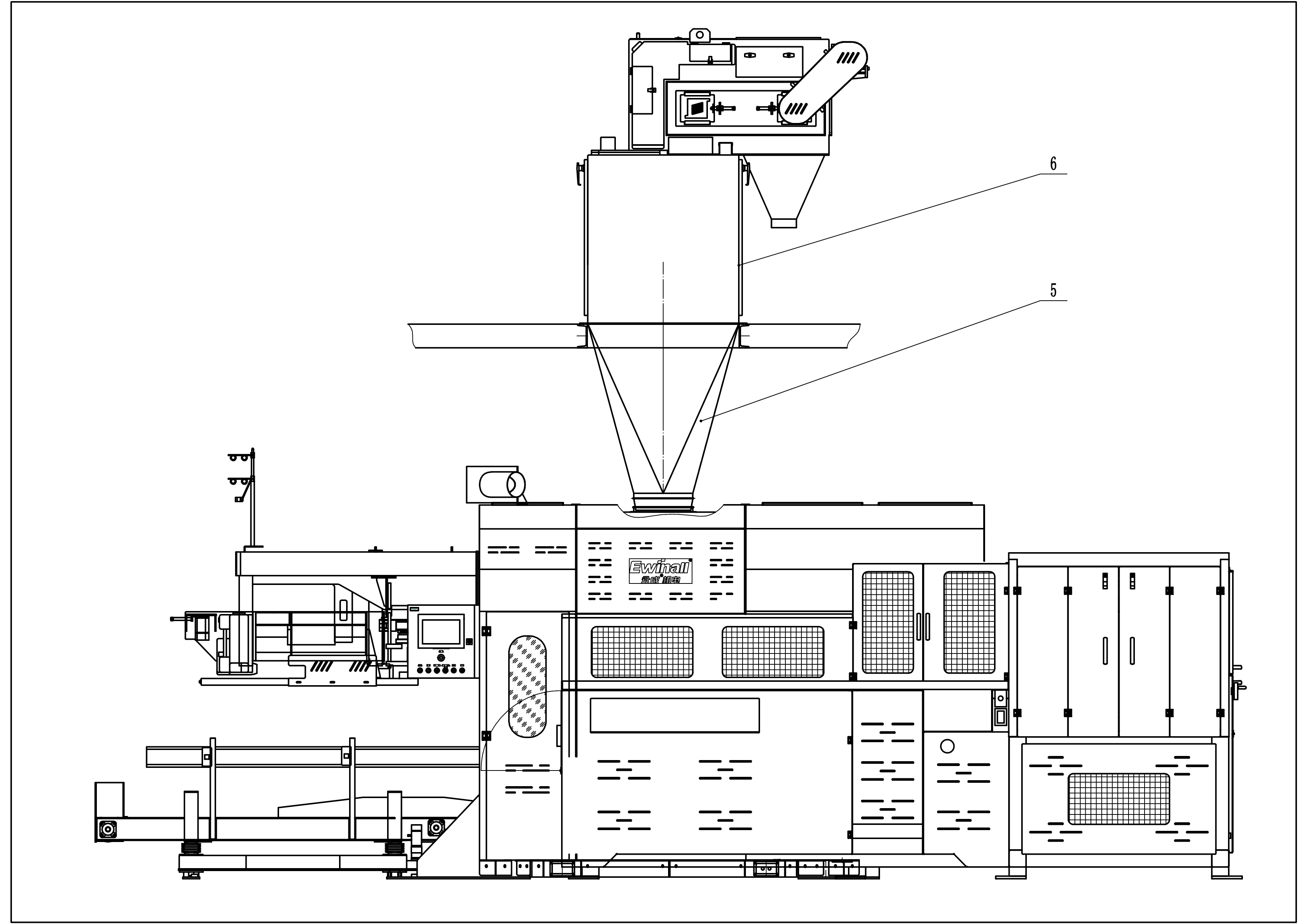

QZB-500BL Fully Automatic Bag Making And Auto Packing Machine
QZB-500BL automatic packaging machine (cut seam version)
The main technical performance of the packaging unit
1. The main basis of the design: automatic packaging, improve
efficiency, save manpower, and easy to operate.
2. Product technical parameters, packaging materials and equipment
operating conditions
| No | Item | Parameter |
| 1 | Main size(L×W×H)mm | 6208.5×3672.5×2191 |
| 2 | Main power | AC380V±10%,50Hz, Three-phase five-wire system ,12kW, Grounding form :TN-S |
| 3 | Maxxium capacity | Bran, sub-flour ,DDGS, Cottonseed meal, rice bran meal
(420～480)bags/h Soybean meal (660～720)bags/h |
| 4 | Packing range | Soybean meal 50-70kg Bran 40kg Sub-flour 50kg | Cottonseed meal 50kg Rice bran meal 60Kg DDGS 50kg |
| 5 | Air preesure | (0.5－0.7)MPa |
| 6 | Air consumption | 333L/min(0.5MPa) |
| 7 | Material temperature | 0°～40° |
| 8 | Working temperature | 0°～40° |
| 9 | Noise level | ≤80dB(A) |
| 10 | Dust removal wind pressure | -0.01～-0.03bar |
| 11 | Dust removal air volume | V=20m³/min(adjustable) |
| 12 | Bag type | Roll |
| 13 | The material of bag | Non-coated woven bag |
| 14 | The size of label | L97mm×W57mm, Kraft paper material . |
| 15 | The specification of bag(roll bag) | Diameter of bag roll (mm):≤1200mm: Single bag length (mm) a:(1050～1240)mm; Single bag width (mm) b:(650～800)mm； |
| 16 | The type of sealing bag | Sewing machine, folding machine |
| 17 | The material | Soybean meal, bran, secondary meal, DDGS, cottonseed meal, rice
bran meal, poultry feed |
functional characteristics:
1. Automatic packaging machine, after the equipment manually places
the bag roll, it can realize automatic bag making, automatic bag
feeding, automatic bag loading, automatic bag opening, automatic
detection, automatic weighing, automatic filling, automatic
sealing, automatic label delivery, high degree of automation.
2. The specially developed woven bag bag making machine adopts the
continuous bag feeding method of automatic winding, automatic
cutting, folding, stitching and automatic bagging of woven bag tube
cloth, which can quickly, stably and reliably provide the packaging
mechanism for bags and Open the bag.
2. Friendly man-machine interface design, using touch screen, PLC
programmable control system, man-machine interface display
operation is clearer, simpler and more user-friendly. The device
has a fault self-check function, and the fault can be quickly
eliminated according to the touch screen prompts.
4. The equipment has high safety. It adopts a closed structure and
is equipped with interlocking devices. If a worker enters the
equipment, the equipment will automatically stop and give an alarm.
After the reset is confirmed manually, the equipment can be
restarted.
5. Unique patented woven bag opening technology, with large flow
vacuum adsorption, stable and reliable bag opening.
6. The transmission mechanism adopts a servo motor and gear
transmission method to ensure that each movement is flexible,
accurate and fast.
7. The unique automatic lifting conveyor adopts single-point drive
four-point vertical lifting, which has the advantages of wide
lifting height range, accurate and stable lifting, and strong
carrying capacity.
8. The weighing system adopts advanced measurement structure,
specially designed three sensors, scientific and reasonable layout,
so that the weighing bucket can be reasonably stressed, which
greatly improves the stability and anti-interference ability of the
equipment.
