fully Automatic rice packing machine

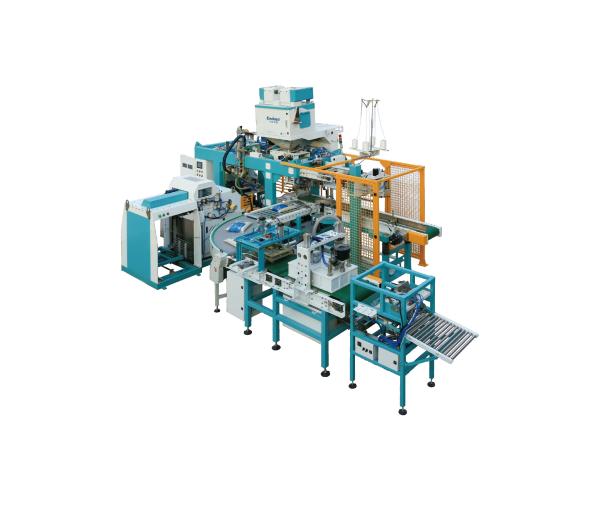

QZB-900Z FULLY AUTOMATIC PP,PE,VACUUM packing machine
The part of machine
1.The scale
2.auto packing machine
3. combination bag spply machine
4.sewing part
5.auto lifting conveyor
6.control system
7.vacuum and shaping part
Main technical performance of packaging unit
Packaging capacity (there is no pause in the normal operation of
the equipment, and the test data is based on rice as the packaging
material):
| The weight | capacity |
| 2.5kg | Inflatable 660-720 packs / hour; vacuum 600-660 packs / hour； |
| 5kg | Inflatable 720-780 packs / hour; vacuum 600-700 packs / hour; woven
bag 800-900 packs / hour;； |
| 10kg | Inflatable 660-720 packs / hour; vacuum 600-660 packs / hour; woven
bag 780-840 packs / hour； |
| 15kg | 600-660 bags / hour in woven bag； |
| 25kg | 500-600 bags / hour in woven bag； |
Note: When using carbon dioxide gas packaging, carbon dioxide gas must
meet the requirements of national standard GB10621-2006, purity
≥99.9%, etc.
Air preesure:0.5～0.7MPa.
Air consumption:The air-packing work consumes 100L / min; the
vacuum work consumes 133L / min.
Power consumption: AC380V ± 10%, 50Hz, three-phase five-wire
system, grounding form: TN-S.Inflatable packaging work 9KW; plastic
vacuum packaging work 12KW.
Ambient temperature: 0 to 40 ° C.
Ambient humidity: no more than 90% RH at 40 ° C, and greater
humidity is allowed at low temperatures.
Dimensions L × W × H (mm): 6492 × 3894 × 3353
Features:
1. Three-in-one packaging unit, which is equipped with woven bag
packaging, inflatable fresh-keeping heat-sealing packaging, and
vacuum packaging on both sides. (Optional folding function)
2. After the equipment is put in the bag manually, it can complete
the filling and sealing process automatically, and the operation is
convenient and simple. The equipment has the function of dynamic
adjustment in place to realize the system parameter recipe storage.
When switching between different product phases, just click on the
product phase to be produced on the touch screen, the device
automatically adjusts to the corresponding parameters, and the
customer realizes automatic production change.
3. It adopts touch screen and PLC programmable centralized control
system, and the drive uses servo control with high degree of
automation. Quick change of specifications, can automatically and
quickly change product packaging specifications to meet the needs
of flexible production.
4. The combined bag feeding machine is suitable for automatic
feeding of woven bags and PE buckle hand packing bags. Double
station bag feeding mechanism, no need to stop the continuous bag
feeding.
5. The equipment has the function of fault self-test prompt, and
the fault can be quickly eliminated according to the fault prompt.
Simple and convenient maintenance.
6. The equipment adopts a closed structure design and has a safety
interlocking device.
7. Quantitative packaging scale adopts separate cylinder to drive
feeding, three-sensor weighing structure.8. The weighing components
are located in a closed working room to reduce the corrosion and
wear of the components.
