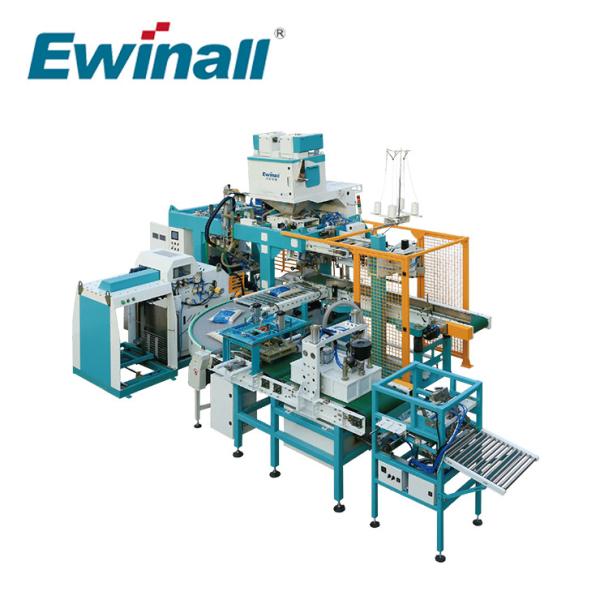

    PP Bag Automatic Rice Packing Machine Double Side Laminated 600 - 900 Bags/H

    Product description

    Ewinall QZB-900Z Automatic Rice Packing Machine Vacuum Double Side Laminated PP Woven Bag 600 - 900 Bags Per Hour 2023

    1. Scope of application

    Automatic packaging of granular materials in rice, seeds, miscellaneous grains, sugar and other industries.

    2. Technical parameters

    modelQZB-900Z
    Filling method1 time/1 bag filling
    Bag materialaM side woven bag (double-sided film) b. Flat woven bag (double-sided film) c. Portable PE bag
    Packing range(2.5-25) kg
    Bag closed forma. Sewing machine b. Sewing machine c. Heat sealing
    Packaging speed(600-900) bags/hour
    Weighing error±0.1%FS
    Feeding formGravity feeding
    StructureCylinder, servo type, supported by three sensors
    Suitable materialsGranular materials with better flowability
    Air pressure(0.5~0.7) MPa
    Air consumptionAir consumption for bag filling work 100L/min
    Air consumption for vacuum work 133L/min
    Power/power consumptionAC380V±10% 50Hz three-phase five-wire system;
    inflatable packaging work 9KW
    plastic vacuum packaging work 12KW
    Grounding formTN-S
    Ambient temperature(0~40)℃
    environment humidityIt does not exceed 90%RH at 40°C,
    and greater humidity is allowed at low temperatures
    Dimensions (mm)
    length × width × height
    6492×3894×3353

    3. Features

    1. Three-in-one packaging unit, with fully automatic packaging unit integrating woven bag packaging, inflatable fresh-keeping heat-sealing packaging, and double-sided vacuum packaging. (Optional folding function)

    2. When switching between different product phases, you only need to click on the product phase to be produced on the touch screen, the equipment will automatically adjust to the corresponding parameters, and the customer will automatically switch production.

    3. It adopts a touch screen, PLC programmable centralized control system, and the transmission uses servo control, which is highly automated.

    4. The combined bag feeding machine is suitable for automatic bag feeding of woven bags and PE buckle hand packaging bags. Double-station bag feeding mechanism, no need to stop the machine for continuous bag feeding.

    5. The equipment has a fault self-checking prompt function, and the fault can be quickly eliminated according to the fault prompt. Maintenance is simple and convenient.

    6. The equipment adopts a closed structure design and has a safety interlocking device.

    7. The quantitative packaging scale adopts a single cylinder to drive the feeding, and a three-sensor weighing structure.

    8. Weighing components are all in a closed working room to reduce corrosion and wear of components.
